Despite current CNC machine tool crash protection strategies which include both proactive avoidance through CAD/CAM programming and reactive damage reduction methods that include electronic sensors and mechanical overload clutches, machine tool crashes are still commonplace.
In these machine tool crashes, tool collisions with high feed rates cause high forces on motor spindles. Depending on the intensity of the collision, the damages could lead to an immediate breakdown or reduced lifetime of the machine components such as machine spindle bearings, resulting in premature failure. Machine spindle damage is common and the cost to repair or replace a machine tool spindle as well as loss of productivity through downtime can run into the tens of thousandths of dollars.

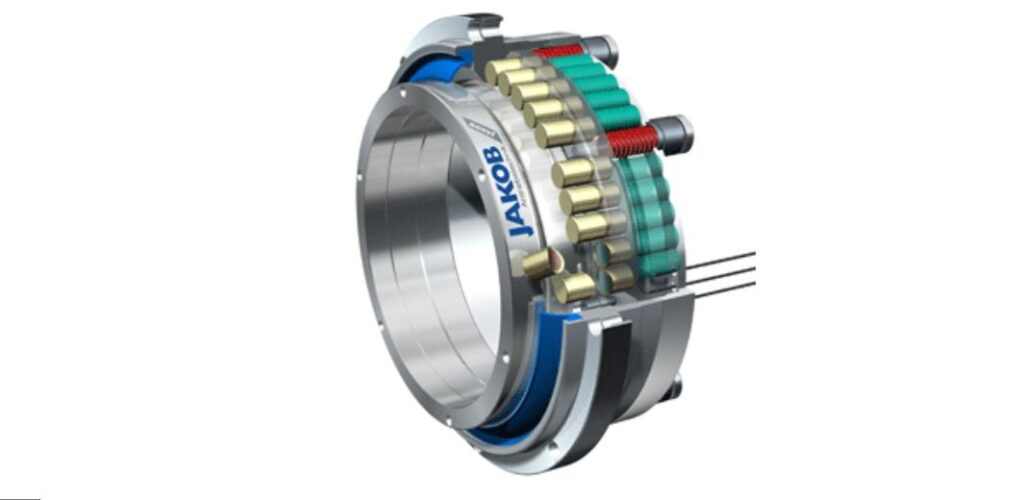

When these machine tool crashes do occur (axial and radial), the spindle safety system immediately disconnects the power transmission at the interface between the machine tool headstock and the motor spindle through 3D displacement. Therefore the shock sensitive components of the motor spindle especially the spindle bearings are effectively protected from the peak impact forces of the tool collision.
Advantages:
• No external power sources needed
• High holding forces
• High stiffness for guaranteed performance
• Kinetic energy from shock load is absorbed through dampening element
• Integrated sensor for position control
• High re-engagement accuracy
• Automatic re-engagement
• Reduced machine downtime for increased productivity
• Available for all motor spindle designs and dimensions
• Maintenance-free
